Key Features

  • Electronic control interface for auto-fill logic
  • Custom configurations for multi-drive conveyor setups
  • Additional thermal protection and vibration dampening systems
  • Compatible with various types of flexible shaft couplings
  • Rated for motors up to 1500 kW at 1500 RPM
  • Fill-controlled for torque regulation during start-up and running
  • Built-in scoop tube for variable fill-level operation
  • Robust, welded steel casing with integrated oil circuit
  • Internal oil pump with continuous lubrication
  • Standstill cooling system
  • Ball and roller bearing support
  • Complete clutch/declutch capability with motor running

‍

Technical Specifications

Specifications
Materials
Catalogue
Torque Control:
Adjustable via oil level
Startup Type:
No-load motor startup with oil fill delay
Max Speed:
Up to 1800 RPM
Control:
Solenoid valve system (dual-valve logic)
Mount Type:
Fixed with flexible coupling integration
Power Range:
71 kW to 1500 kW depending on model
Cooling:
External oil cooler with lube line circuit
Valves:
Solenoid + non-return valves
Bearings:
High-capacity ball/roller type
Housing:
Welded steel, corrosion-resistant
Oil Type:
Turbine Oil ISO VG 32
Fixed Machinery: FNCT Fill-Controlled Couplings
Download PDF

Product Gallery

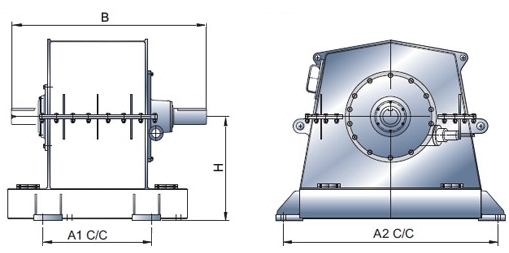

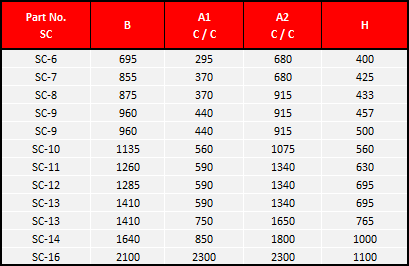

Dimensional Data

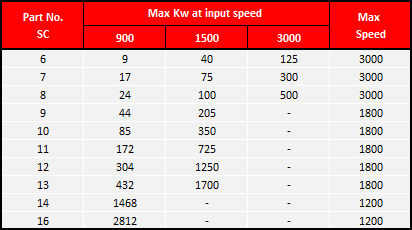

Performance Data
