Key Features

  • External oil cooler
  • Quick release valve
  • Elastic coupling or pulley on output shaft

‍

  • Power range: Up to 800 kW
  • Designed for combustion engine drives
  • SAE housing and flywheel compatible
  • Drain type with stationary housing
  • Electrically operated bypass valve
  • Integral shaft-driven oil pump
  • Supports elastic coupling, cardan shaft, or pulley connection
  • Smooth acceleration and belt slip avoidance
  • Built-in oil circulation, filtering, and temperature control

‍

Technical Specifications

Specifications
Materials
Catalogue
Compatible:
SAE 2-1-0 and 1-0-00 housing
Max Power:
320 kW at 1500 RPM
Max Bore:
Up to 100 mm
Models:
HLN500 IC, HLN540 IC, HLN615 IC
Continuous clutching
capability with bypass valve
Oil circulation
via shaft-driven pump
Max Speed:
Up to 2600 RPM
Construction:
No-wear components, long operational life
Housing:
Stationary with integrated SAE mount
Cooling:
Via oil pump + external cooler (optional)
Shaft Seal:
Robust construction with temperature and pressure switches
Coupling Type:
Drain type, flexible connection ready
Mobile Machinery: Type HLN
Download PDF

Product Gallery

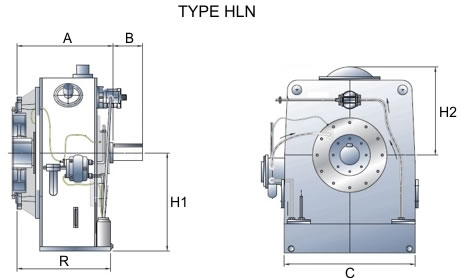

Dimensional Data

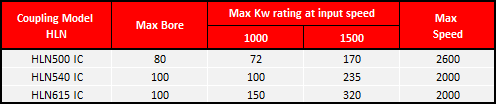

Performance Data
