Key Features

  • Steel body with Viton seals for mining use
  • Thermal Protection System
  • Radial displacement option with brake drum shift (dimension K)
  • Extended shaft clearance for brake drum movement
  • Wide coupling model range with compatible FXC types
  • Brake drum mountable on request

‍

  • Power range: 5 kW to 1000 kW
  • Aluminium or steel body available
  • Metallic disc flexible coupling on output side
  • Resilient driving plate on input side
  • Radially displaceable for easy removal
  • Inbuilt Delay Fill chamber
  • Starting torque adjustable from 170% to 250%
  • Normal operating slip: 2%–5%
  • Supports 2 starts from hot, 3 from cold
  • Fusible plug: 130°C standard (160°C optional)
  • Pre-bored and keyed for shaft mounting

‍

Technical Specifications

Specifications
Materials
Catalogue
Compatible Shaft Sizes:
Wide support (up to 180 mm)
Start Profile:
Smooth, torque-adjusted, multi-start capable
Power Rating:
• From 1.1 kW to 1000 kW depending on speed and model • Max Speed: 1470 RPM
Max Bore (O.D1):
35 mm to 175 mm
Operating Slip:
2–5%
Output Side:
55 mm to 180 mm
Input Plate:
Resilient or Brake Drum
Fusible Plug:
130°C (160°C optional)
Seals:
Nitrile (standard), Viton (mining spec)
Body:
Aluminium or Steel
Output Coupling:
Metallic Disc
Radially Removable Couplings: Type T-12
Download PDF
Coupling – T-12/08B
Download PDF

Product Gallery

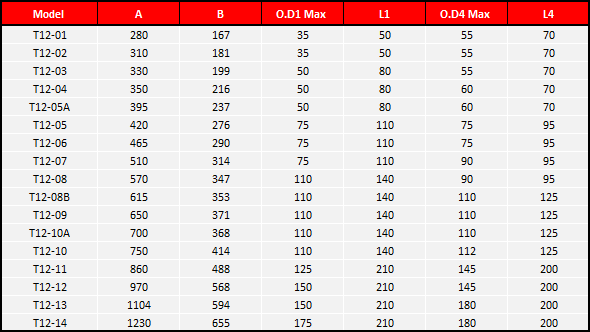

Dimensional Data

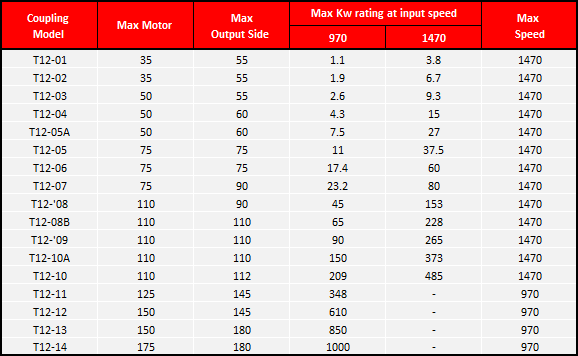

Performance Data
