Key Features

  • Thermal Protection System
  • Stainless steel shaft (WFDF-7 model)
  • Water-filled operation
  • Application engineering & energy-saving consultation
  • Custom bore/key sizing per client specification
  • Brake drum with extended fill system

‍

  • Radially displaceable fluid coupling with metallic disc flexible ends
  • Aluminium body for standard applications
  • Steel body for underground mining with Viton seals
  • Available as basic ‘HF’, ‘HFD’ (Delay Fill), or ‘HF-DX’ (Extended Delay Fill Chamber)
  • Brake drum compatibility: 160 mm to 710 mm diameter
  • Fusible plug safety system
  • Ready-to-fit couplings bored and keyed for driver and driven shafts

‍

Technical Specifications

Specifications
Materials
Catalogue
Application
Conveyor (Client: Toucan Industrial)
Protections
Thermal Protection System + Fusible Plug
Slip
2% to 5% depending on coupling size & starting torque
Brake Drum Compatibility
160 mm – 710 mm diameter
Performance
110 kW @ 1440 RPM
Fill Options
HF (basic), HFD (Delay Fill), HF-DX (Extended Delay Fill Chamber)
Coupling Model
WFDF-7 Steel Body, SS Shaft, Water Filled
Range
Smallest 4 kW @ 4 pole up-to Largest 2000 kW @ 6 pole
Body
Aluminium / Steel (with Viton seals)
Shaft
Stainless Steel (SS)
Fluid
Water-filled
Download PDF

Product Gallery

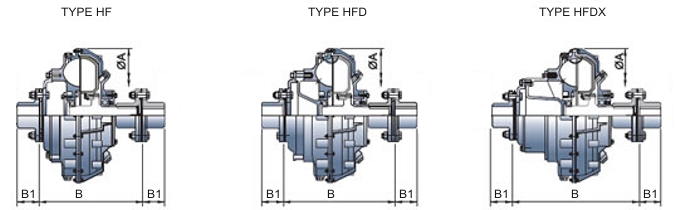

Dimensional Data

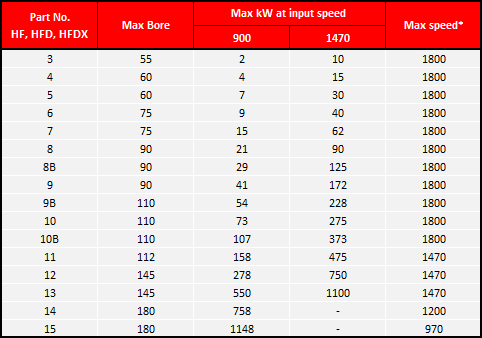

Performance Data
