Plug Valves VP-100
ECONTROL’s VP-100 plug valve series is globally trusted for high-pressure shut-off applications in both sea water desalination and oil & gas sectors. Designed with corrosion-resistant materials and optimized sealing solutions, VP-100 offers unmatched durability across demanding industrial environments.
Key Features
- Designed for high pressure and corrosive media
- Trunnion-mounted plug for consistent sealing
- Tight shut-off even under temperature variation
- Compliant with API 6D and CE standards
- Low maintenance and extended lifecycle
- Available in both manual and actuated versions
- Fire-safe design
- Metal seated options
- ENP, HC, or TC coated plugs
- High-temperature sealing solutions
- Integrated actuation packages
- Available from DN ½” to DN 36”
Technical Specifications
Pressure ratings
ANSI 150#, ANSI 300#, ANSI 600#. Please enquiry for higher or lower ratings
Manufactured sizes
NPS 1/2” thru NPS 24”
Valve connections
ASME B16.5 (FF, RF, Threaded), MSS SP-44, ASME B16.25 (BW, SW, WE)
Standardization
API 6D, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175. Please enquiry for other standards
Seat(s)
PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome)
Sealing
BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene
Body
ASTM A216, A105, A350, A182, A351, A352, A890, A995
Trim
ASTM A216, A105, A350, A182, A351, A352, A890, A995
Catalogue
Download PDF
Pressure ratings
ANSI 150#, ANSI 300#, ANSI 600#. Please enquiry for higher or lower ratings
Manufactured sizes
NPS 1/2” thru NPS 24”
Valve connections
ASME B16.5 (FF, RF, Threaded), MSS SP-44, ASME B16.25 (BW, SW, WE)
Standardization
API 6D, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175. Please enquiry for other standards
Seat(s)
PTFE, NYLON, PEEK, NBR, KELF, ENP (Electroless nickel plating), HC (Hard chrome)
Sealing
BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene
Body
ASTM A216, A105, A350, A182, A351, A352, A890, A995
Trim
ASTM A216, A105, A350, A182, A351, A352, A890, A995
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Product Gallery

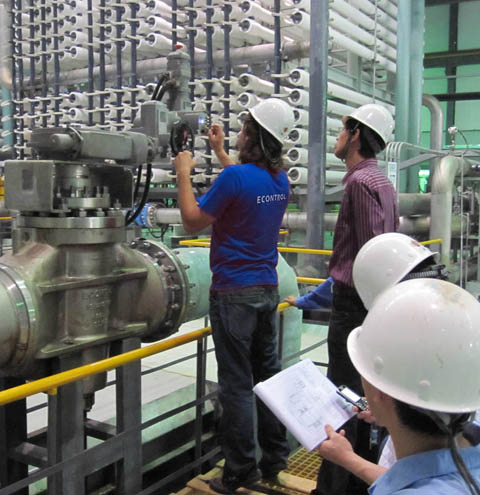

18” ANSI 600# HP Plug Valve during plant commissioning
12” ANSI 600# HP Plug Valve during plant commissioning

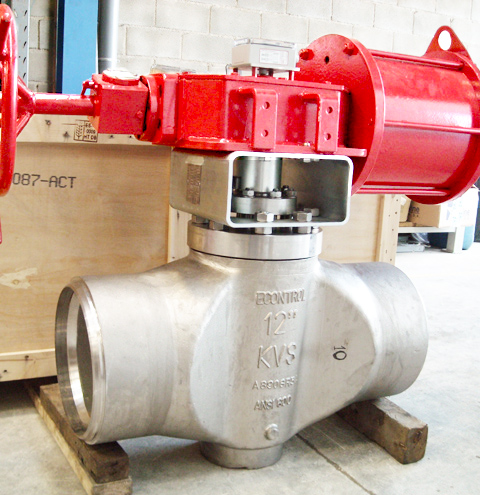

12” ANSI 600# HP Plug Valve during packing stage
