Post Indicator Valves (PIV)
Post Indicator Valves (VG-100-PIV) are designed to operate non-rising stem gate valves from outside of a protected area. They provide visible status (open/shut) above ground, ensuring emergency access and quick valve positioning, especially useful for fire protection systems.
Key Features
The ECON-TROL Post Indicator Valves (VG-100-PIV series) operate inside screw gate valves and are intended for use in underground water supply control for sprinkler, fire water line, and deluge systems. These allow above-ground visual confirmation of the valve status and adjustment flexibility.
The VG-100-PIV features:
- Telescoping stem for length customization
- “OPEN/SHUT” visor plates without removing cover
- Locking positions
- Visual indicator for emergency situations
- Above-ground telescopic post design
- Adjustable position without cutting
- Direct mount for electrical supervisory switch
- Right or left-hand opening conversion options
- Compatibility with underground gate valves
- Certified for fire protection system integration
Technical Specifications
Standardization
API 6D, API 600, API 602, API 603, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175, GOST, JIS
Manufactured sizes
NPS 4” thru NPS 32”. Lower, higher or special sizes may be developed upon request, please enquiry
Valve connections
ASME B16.5 (FF, RF), MSS SP-44. Please enquiry for special connections
Pressure ratings
ANSI 150#, ANSI 300#. Please enquiry for higher or lower ratings
Sealing
BUNA-N, EPDM, VITON, HNBR
Body
ASTM A216, A105, A126, GGG-40, C95300, C95800
Trim
ASTM A216, A105, A126, GGG-40, C95300, C95800
Seat(s)
PTFE, NBR, ENP (Electroless nickel plating), HC (Hard chrome)
Catalogue
Download PDF
Standardization
API 6D, API 600, API 602, API 603, API 6FA, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175, GOST, JIS
Manufactured sizes
NPS 4” thru NPS 32”. Lower, higher or special sizes may be developed upon request, please enquiry
Valve connections
ASME B16.5 (FF, RF), MSS SP-44. Please enquiry for special connections
Pressure ratings
ANSI 150#, ANSI 300#. Please enquiry for higher or lower ratings
Sealing
BUNA-N, EPDM, VITON, HNBR
Body
ASTM A216, A105, A126, GGG-40, C95300, C95800
Trim
ASTM A216, A105, A126, GGG-40, C95300, C95800
Seat(s)
PTFE, NBR, ENP (Electroless nickel plating), HC (Hard chrome)
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Product Gallery

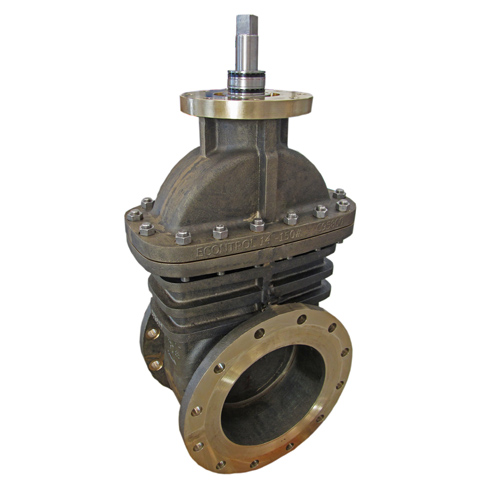

12” ANSI 150# Post indicator valves after main components assembly

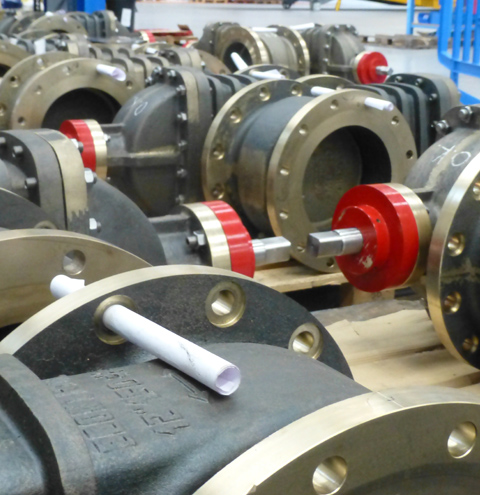

12” and 14” ANSI 150# (API 6D) during assembly stage
14” ANSI 150# Post indicator valves during visual indicator fine tuning
Post Indicator Valve body detail

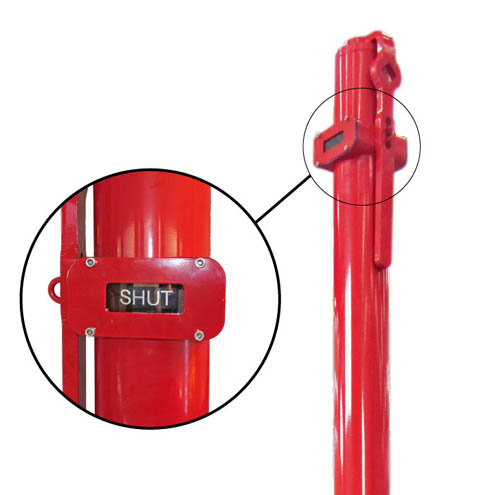

Post Indicator Valve open/shut visor detail

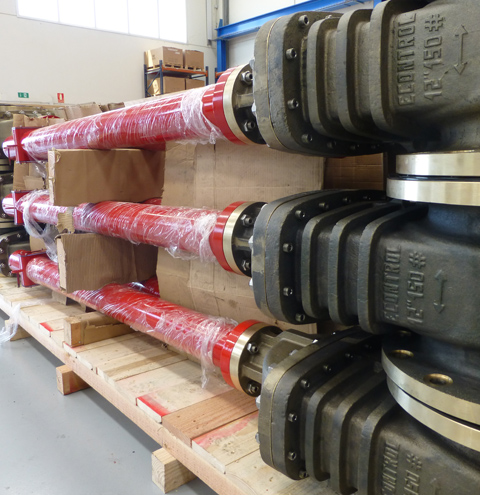

Post Indicator Valves during packing stage
