VC-100 Globe Control Valve
In 2007 ECONTROL became Europe’s most valuable control valve company. The VC-100 and VC-101 globe control valves are time-tested solutions in regulation service. Used across Europe and worldwide, these valves are trusted in process industries for their superior flow control, anti-cavitation design, and customized trim options.
Key Features
- Available in two-way and three-way configurations
- Single and double seated arrangements
- Anti-cavitation trim and pressure reduction options
- Bespoke engineering by ECONTROL’s Valve Engineering Unit (V.E.U.)
- High precision valve sizing via SMARTEC software
- Fully certified for oil & gas, water, and industrial systems
- Custom trims for severe service conditions
- Noise reduction trim options
- Actuation system integrations
- Extended temperature or pressure resistance designs
- Digital twin valve modeling via ECONTROL SMARTEC®
Technical Specifications
Manufactured sizes
DN 15 thru DN 900 / NPS 1/4” thru NPS 36”. Higher or special sizes may be developed upon request, please enquiry
Pressure ratings
ANSI 150#, ANSI 300#, ANSI 600#, ANSI 900#, ANSI 1500#, ANSI 2500#. Please enquire for higher or lower ratings
Valve connections
ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, API 605, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquire for special connections
Standardization
BS 1873, API 623, FCI 70-2, API 6D, API 600, API 609, ASME B16.34, API 6FA, API 607, BS 6755 Part 2, ASME B16.10, API 598, GOST, JIS, NACE 01-MR-0175. Please enquire for other standards
Body
Carbon steel, Stainless steel, Duplex, Super Duplex, Monel, Inconel, Avesta, Titanium (cast or forged body options)
Packing
Graphite, PTFE, or engineered low-emission packing sets for fugitive emissions control
Trim
Engineered in various corrosion- and erosion-resistant alloys to suit demanding process conditions
Bonnet
Material matches the valve body; optional extended bonnet available for cryogenic service
Catalogue
Download PDF
Manufactured sizes
DN 15 thru DN 900 / NPS 1/4” thru NPS 36”. Higher or special sizes may be developed upon request, please enquiry
Pressure ratings
ANSI 150#, ANSI 300#, ANSI 600#, ANSI 900#, ANSI 1500#, ANSI 2500#. Please enquire for higher or lower ratings
Valve connections
ASME B16.5 (FF, RF, RTJ, Threaded), ASME B16.47 Series A or B, API 605, MSS SP-44, ASME B16.25 (BW, SW, WE). Please enquire for special connections
Standardization
BS 1873, API 623, FCI 70-2, API 6D, API 600, API 609, ASME B16.34, API 6FA, API 607, BS 6755 Part 2, ASME B16.10, API 598, GOST, JIS, NACE 01-MR-0175. Please enquire for other standards
Body
Carbon steel, Stainless steel, Duplex, Super Duplex, Monel, Inconel, Avesta, Titanium (cast or forged body options)
Packing
Graphite, PTFE, or engineered low-emission packing sets for fugitive emissions control
Trim
Engineered in various corrosion- and erosion-resistant alloys to suit demanding process conditions
Bonnet
Material matches the valve body; optional extended bonnet available for cryogenic service
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Product Gallery

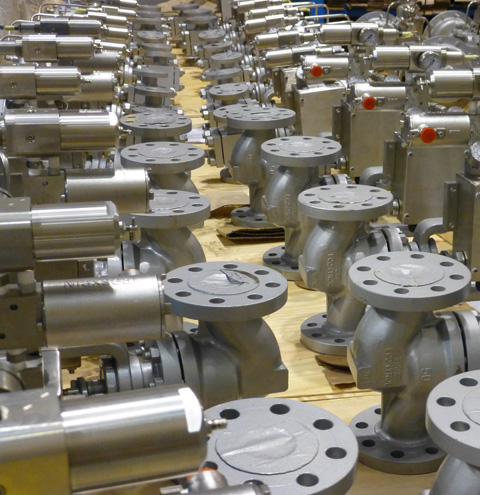

Globe Control Valves during packing stage
VC-100 Image 8

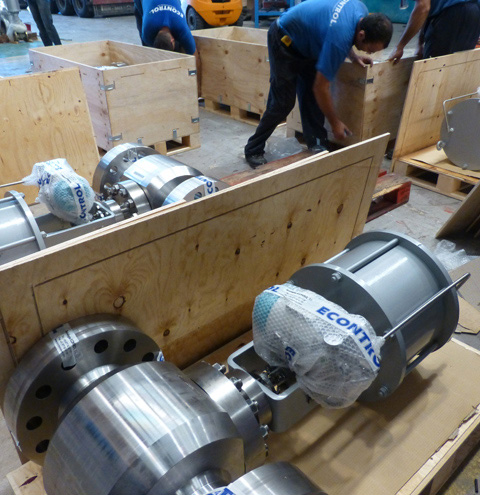

6" ANSI 1500# Globe Control Valves during packing stage

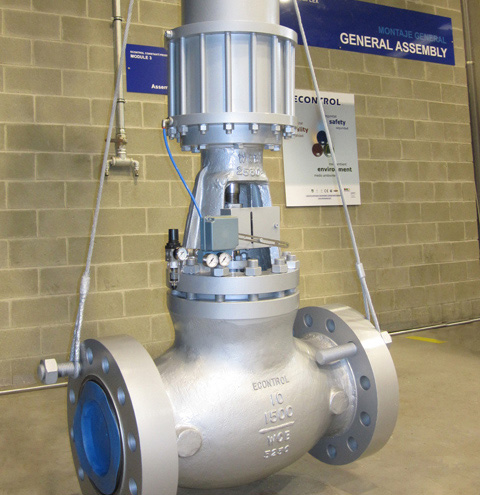

10" ANSI 1500# Globe Control Valve for high pressure severe duty
DN 300 (12") PN 16 Butterfly Control Valve during control panel integration

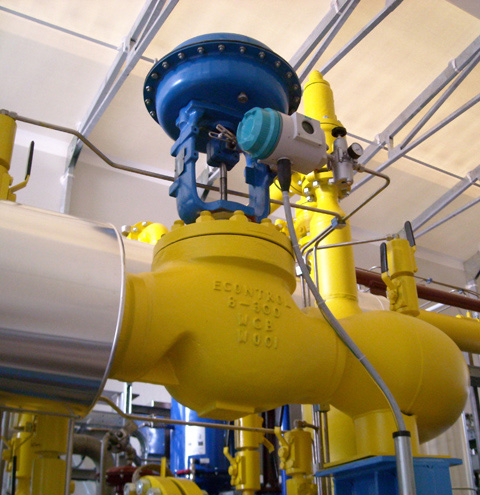

DN 100 (4") PN 16 Globe Control Valve for gas process plant

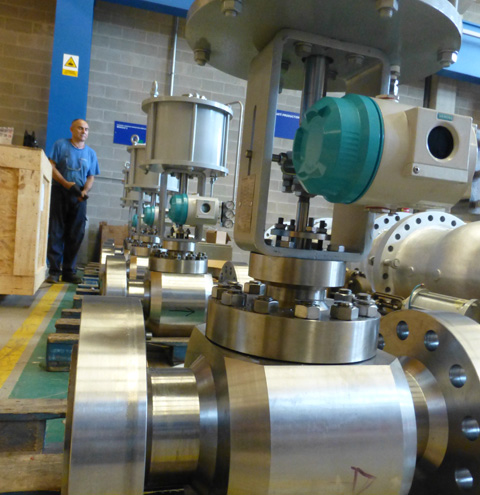

4" ANSI 2500# Globe Control Valve with SIEMENS® SIPART PS2 Positioner
8" ANSI 300# Globe Control Valve with SIEMENS® SIPART PS2 Positioner
