VM Series Butterfly Valves – VM-100 / VM-200 / VM-300
The ECONTROL VM Series (VM-100 / VM-200 / VM-300) includes concentric, double, and triple eccentric butterfly valves tailored for industrial flow regulation. Designed with the latest engineering practices, this series supports a wide range of actuation types and ensures reliable performance in both low and high-pressure applications.
VM-100: Standard concentric type, ideal for general service.
VM-200: High-performance butterfly valve (double or triple eccentric), ANSI 900# rating available.
VM-300: Large-diameter, heavy-duty butterfly valves and dampers (up to DN 2000).
Key Features
- Concentric and eccentric designs for various pressure requirements.
- Available in manual, pneumatic, electric, hydraulic, and electro-hydraulic actuation.
- Immersion, cryogenic, gas, fire-safety, and helium testing compliant.
- Modular components with wide material compatibility.
- Designed, built, tested, and certified under EU and international standards.
- Custom actuation setups (open/close loop, precision control).
- Rubber-lined and PTFE-lined versions for corrosive environments.
- Full compliance with potable water, mining, chemical, and offshore standards.
- Wafer, lugged, and flanged ends.
- Integration with plant monitoring systems.
Technical Specifications
Valve Connections
ASME B16.5 (FF, RF, RTJ), ASME B16.47 Series A or B, MSS SP-44, Wafer, Lugged
Pressure Ratings
PN2, PN6, PN10, PN40, PN100 / ANSI 150#, ANSI 300#, ANSI 600#, ANSI 900#
Standardization
API 609, ASME B16.34, API 607, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175
Manufactured Sizes
DN 25 thru DN 6000 / NPS 1" thru NPS 240". Higher or special sizes may be developed upon request.
Body
ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL
Trim
ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL
Sealing
BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene
Catalogue
Download PDF
Valve Connections
ASME B16.5 (FF, RF, RTJ), ASME B16.47 Series A or B, MSS SP-44, Wafer, Lugged
Pressure Ratings
PN2, PN6, PN10, PN40, PN100 / ANSI 150#, ANSI 300#, ANSI 600#, ANSI 900#
Standardization
API 609, ASME B16.34, API 607, BS 6755 Part 2, ASME B16.10, API 598, NACE 01-MR-0175
Manufactured Sizes
DN 25 thru DN 6000 / NPS 1" thru NPS 240". Higher or special sizes may be developed upon request.
Body
ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL
Trim
ASTM A216, A126, GGG-40, A350, A182, A351, A352, A890, A995, C95300, C95800, MONEL, INCONEL
Sealing
BUNA-N, EPDM, VITON, Flexible graphite, FKM, HNBR, Nitrile, Neoprene
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Catalogue
Download PDF
Product Gallery
42" ANSI 300# (API 609, API 607) – with Electric actuator

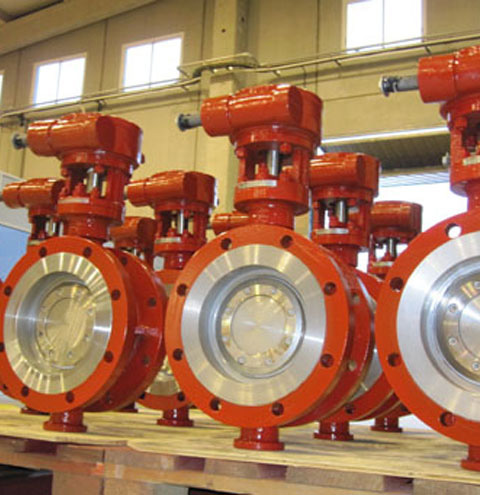

6" ANSI 300# (API 609, API 607) – during packing stage

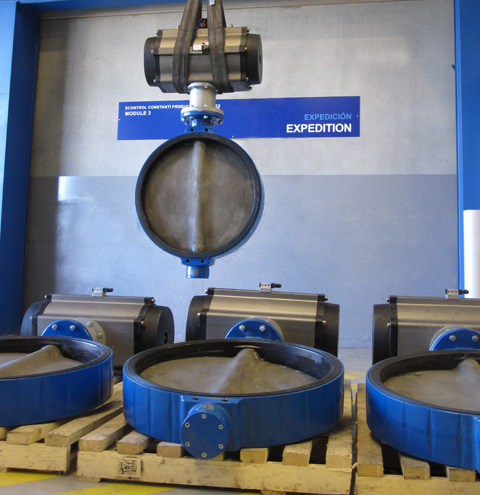

DN 900 (36") PN 16 (ASME B16.34) – Rubber Lined with Pneumatic actuator
18" ANSI 300# (API 609, API 607) – High Temperature test

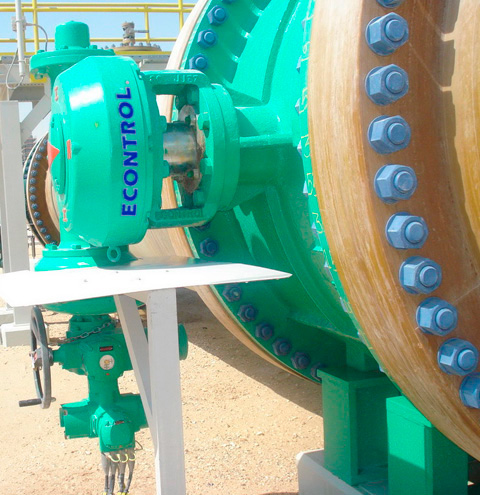

DN 2000 (80") PN16 (ASME B16.34) – for Cooling Water service

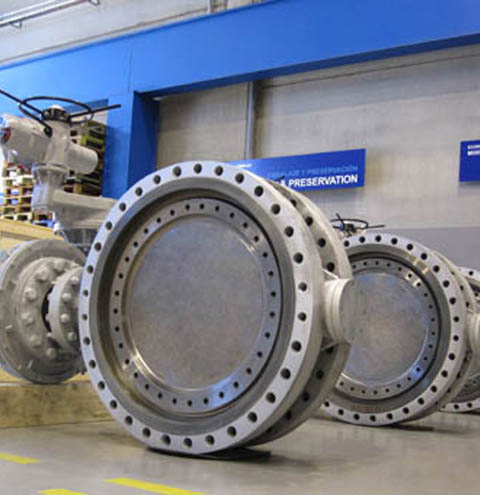

42" ANSI 300# (API 609, API 607) – with Electric actuator

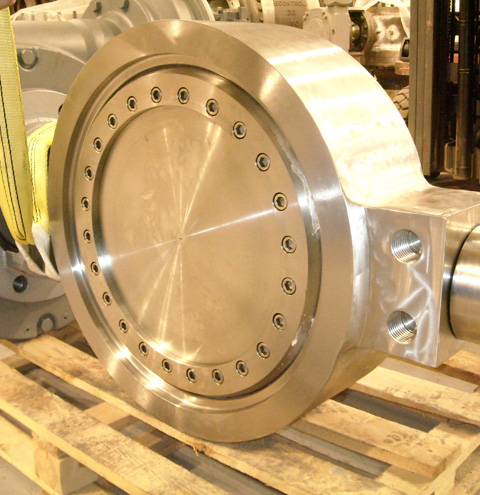

24" ANSI 600# (ASME B16.34) – High Performance Severe service valve

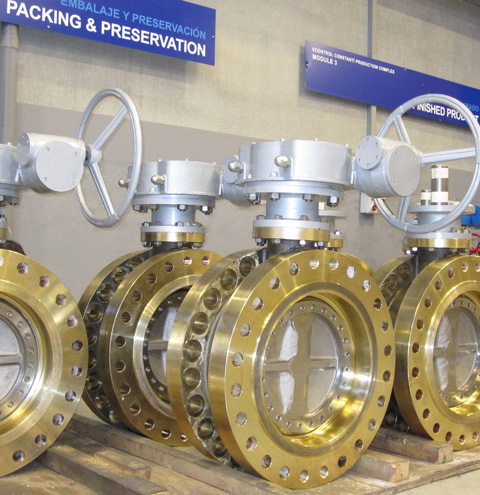

6" ANSI 300# (API 609, API 607) – during packing stage
24" ANSI 600# (API 609) – Flanged valves for Sea Water service
